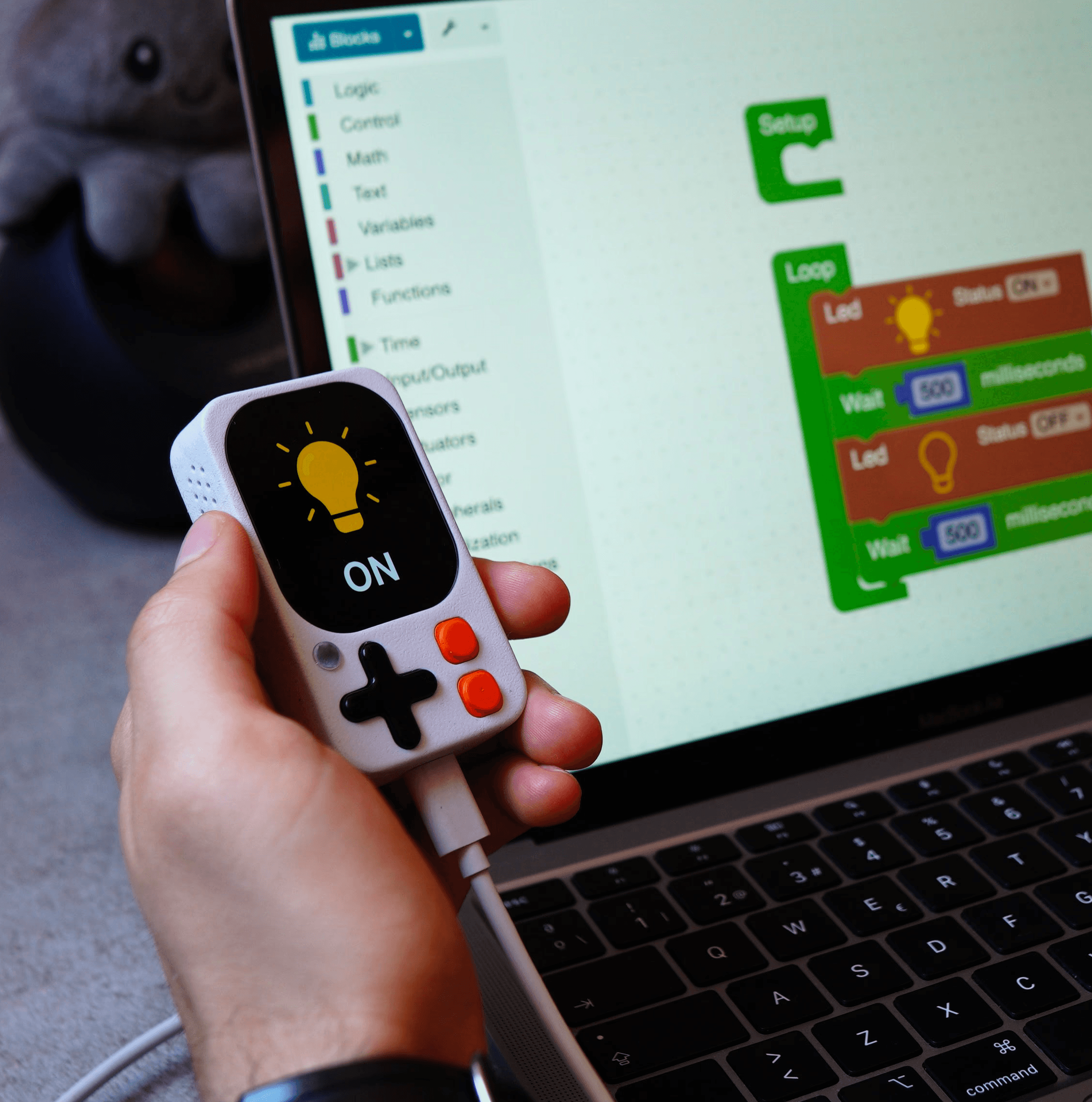

From idea to prototype in minutes.

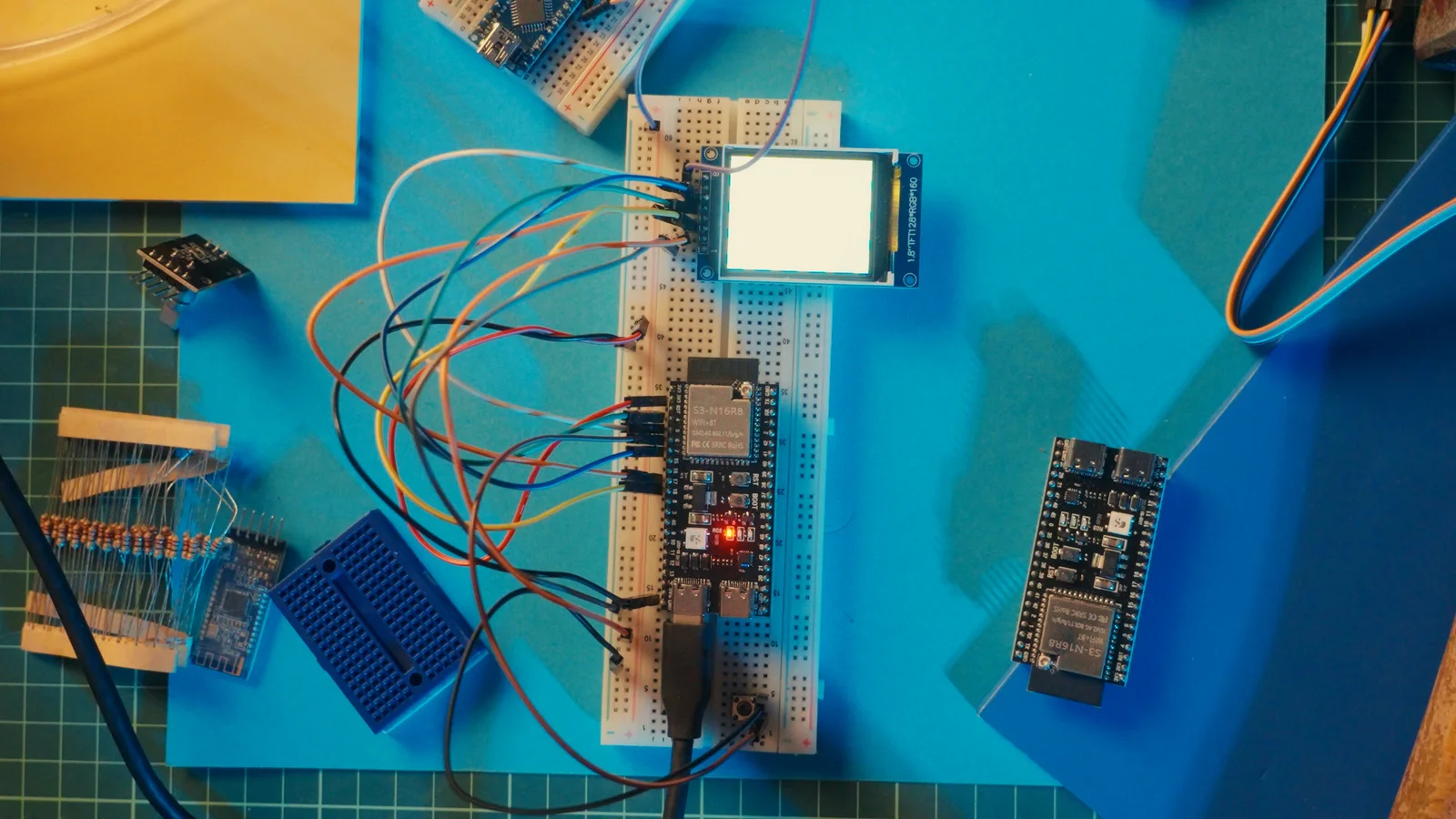

Don't spend a lot of time putting together cables, screen, buttons, ...
Start right over

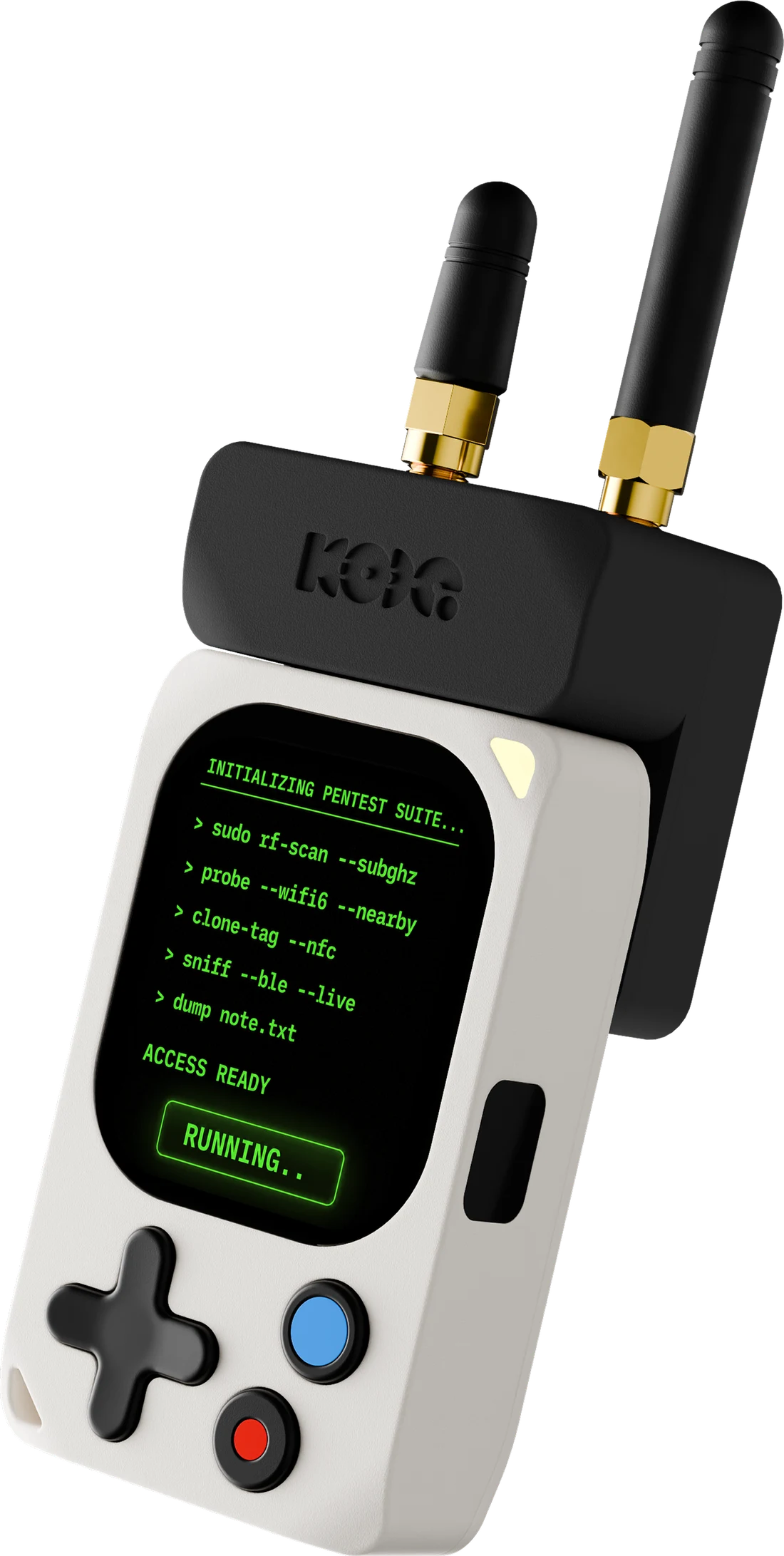

RF bench in your pocket.
- SubGHz
- 2.4GHz
- WiFi6
Snap on the F*CK module to unlock all the pentesting power. Always with responsibility :)
Just have fun.
- Apps
- Modules

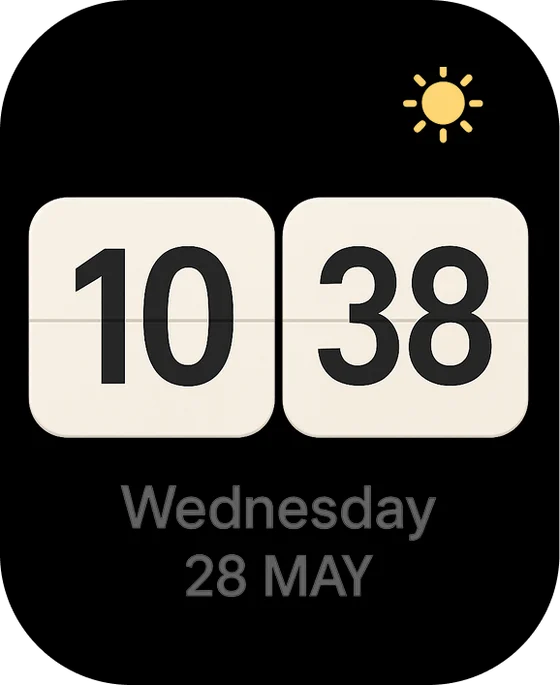

- Watch faces
Collect modules, hoard community apps, hack your watch face. The gadget you always wanted to fidget with.

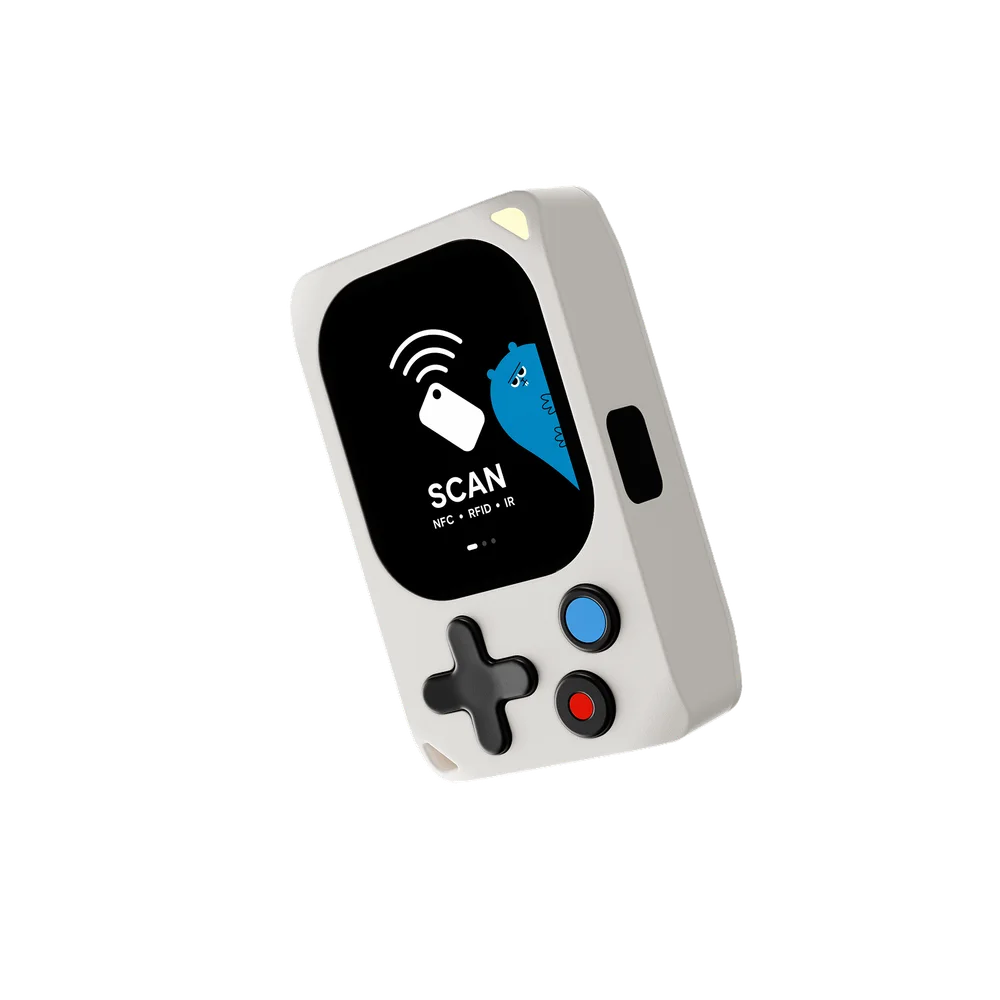

Read, write & emulate.
13.56 MHz125 kHz

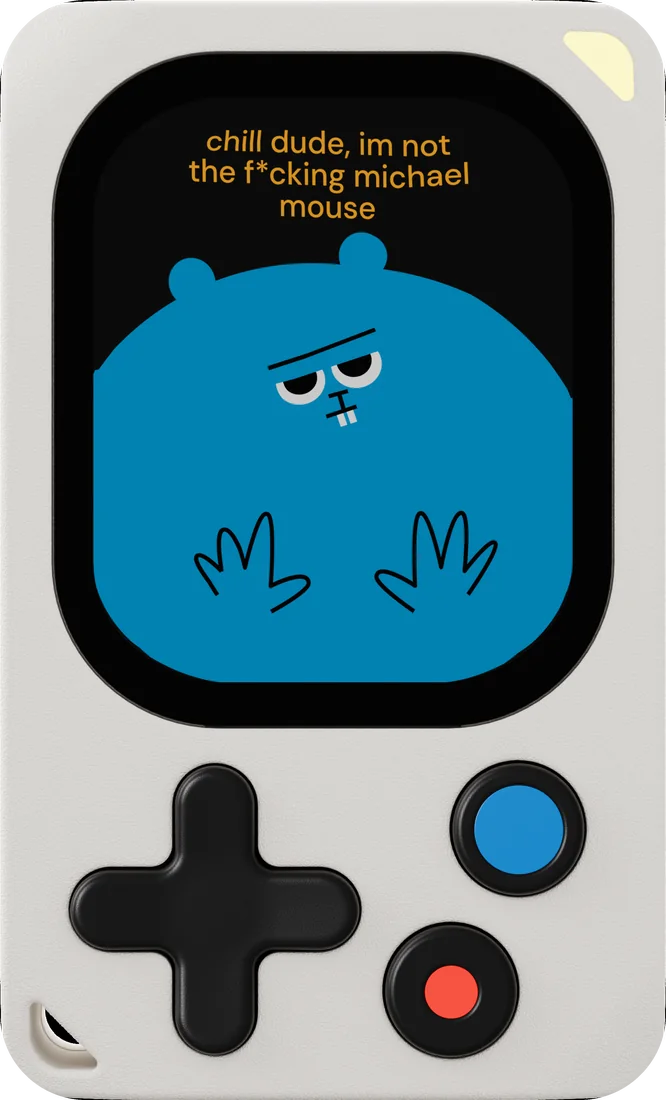

Share what you build.
Browse what the community ships: games, tools and toys. Run them on your Kode Dot.
- Snake — Luismi Kode
- Invaders — Luismi Kode
- Doom — kode.diy
- Dice — Luismi Kode

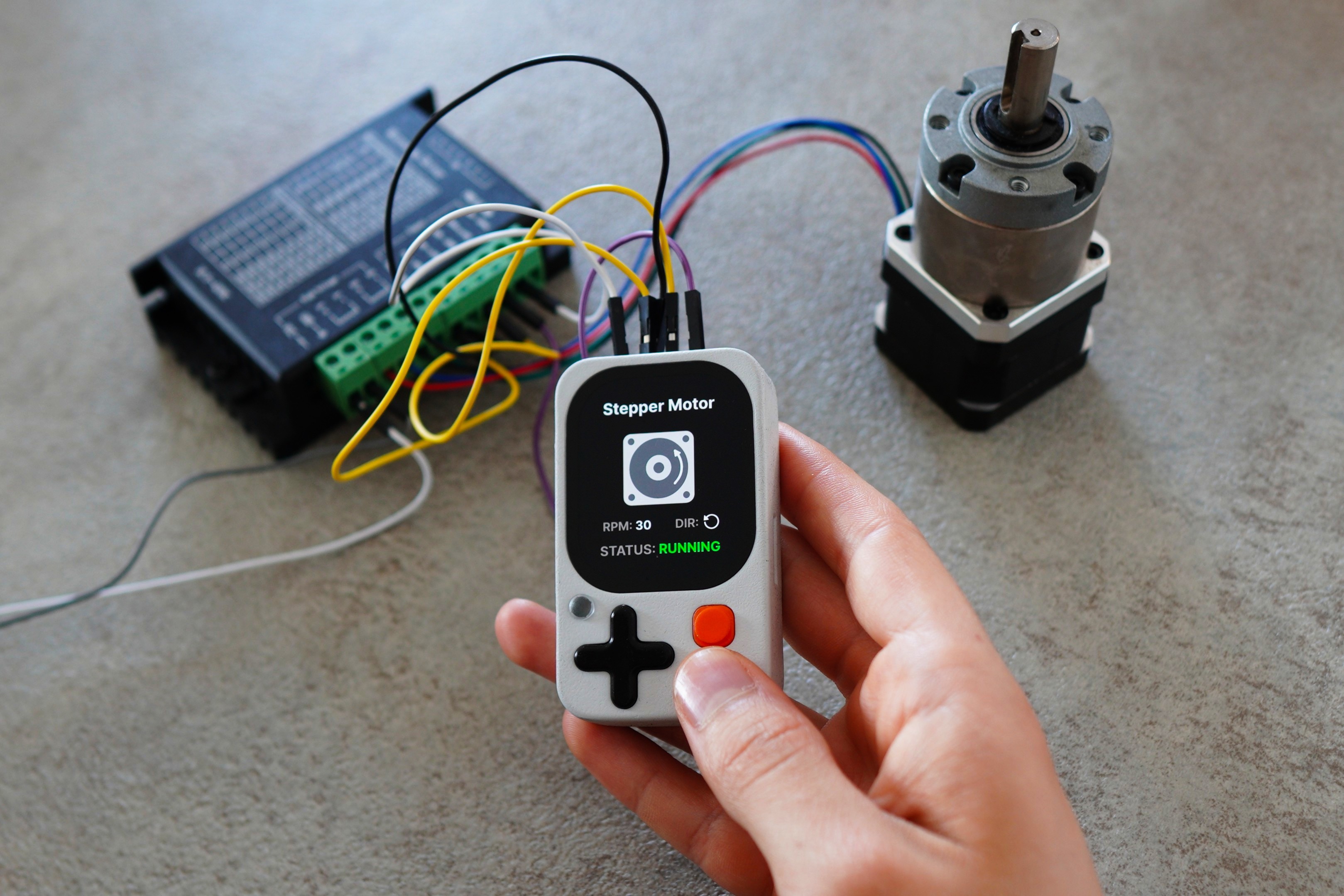

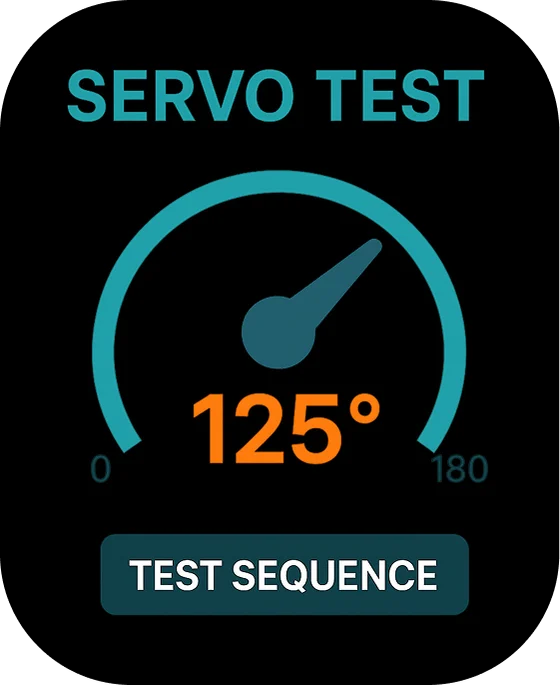

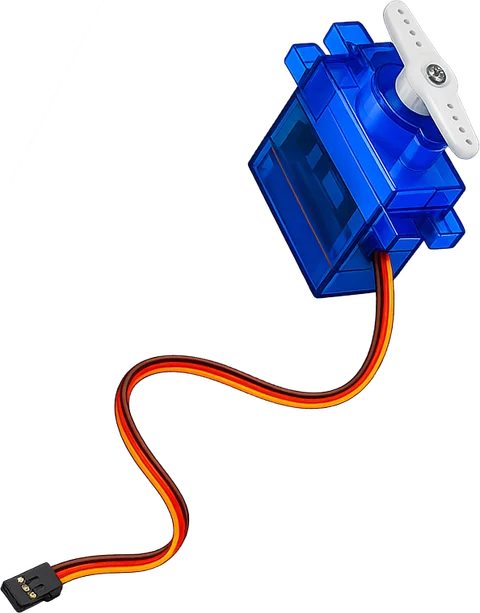

- ServoControl — Luismi Kode
- BubbleLevel — Luismi Kode
- AirMouse — Luismi Kode

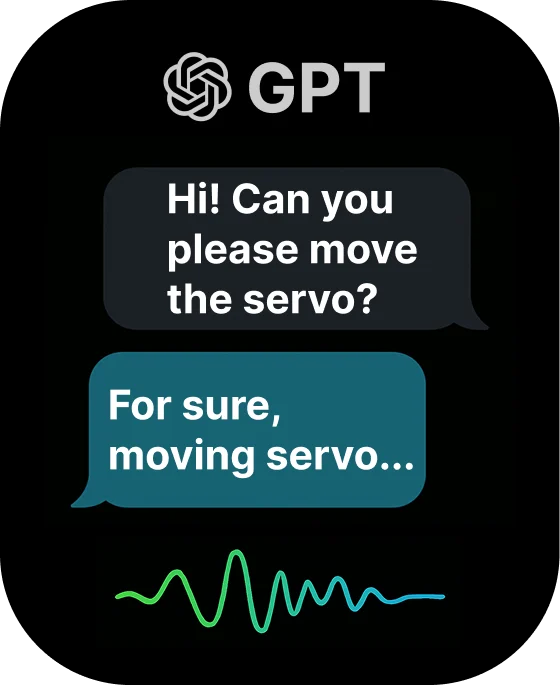

- CuteAssistant GPT — kode.diy

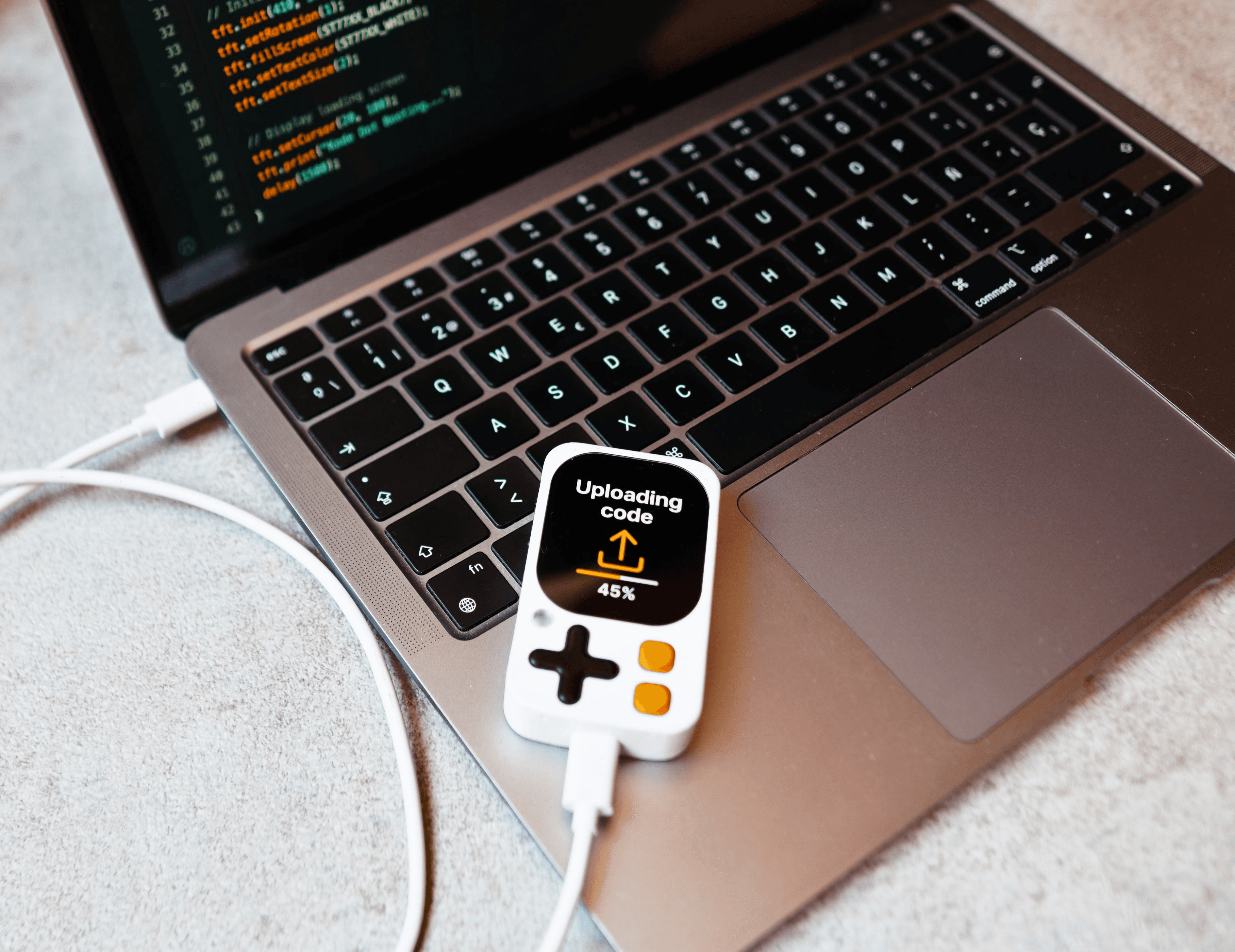

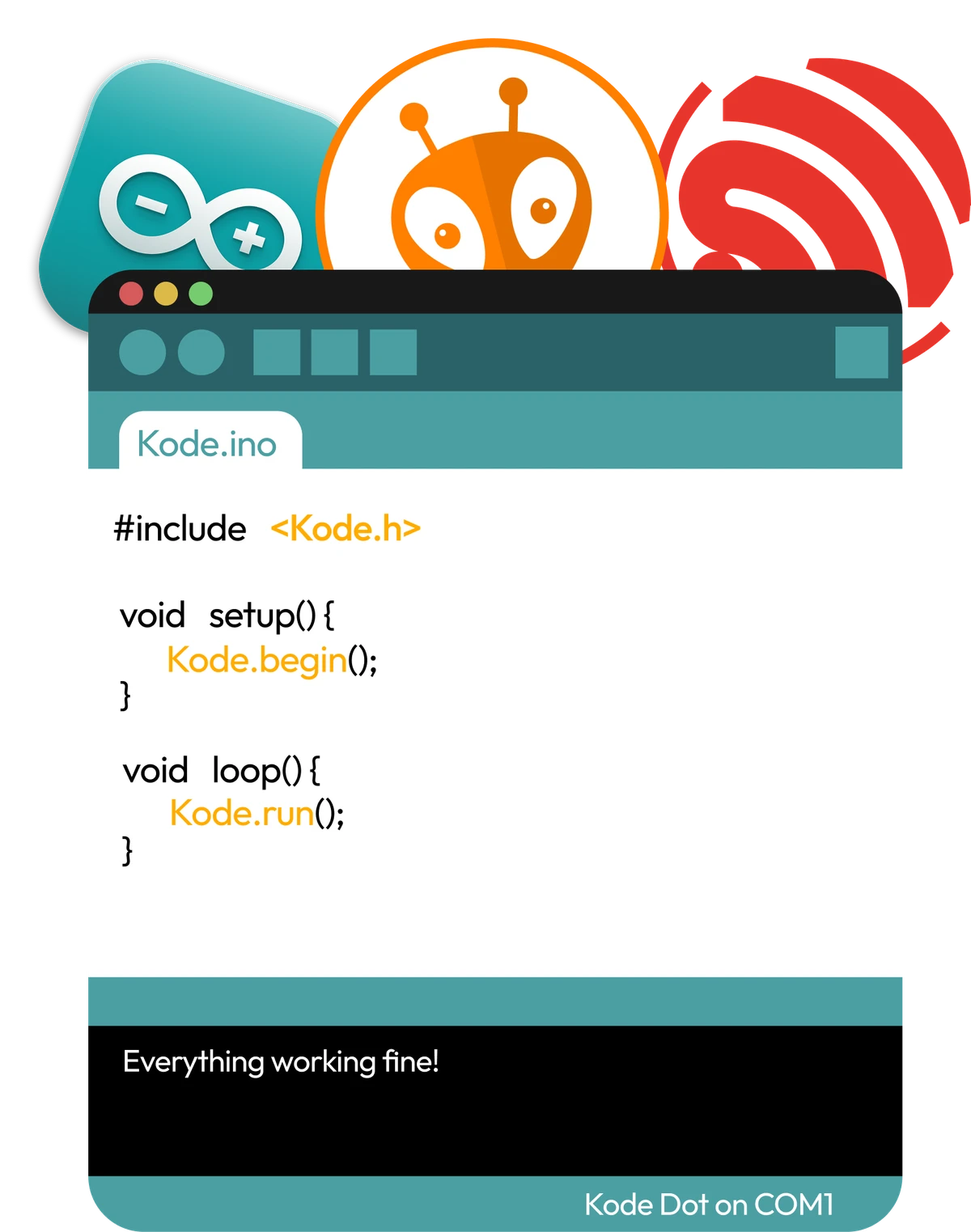

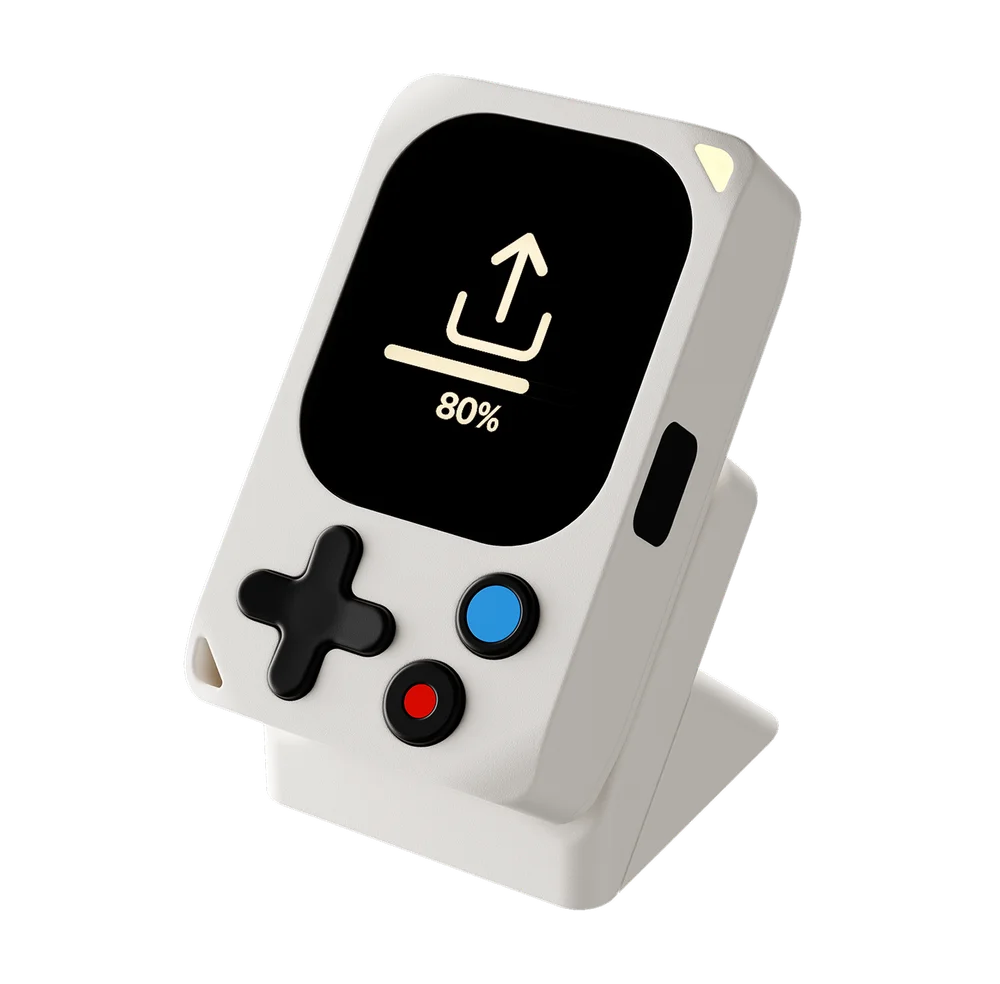

Program it like any ESP32

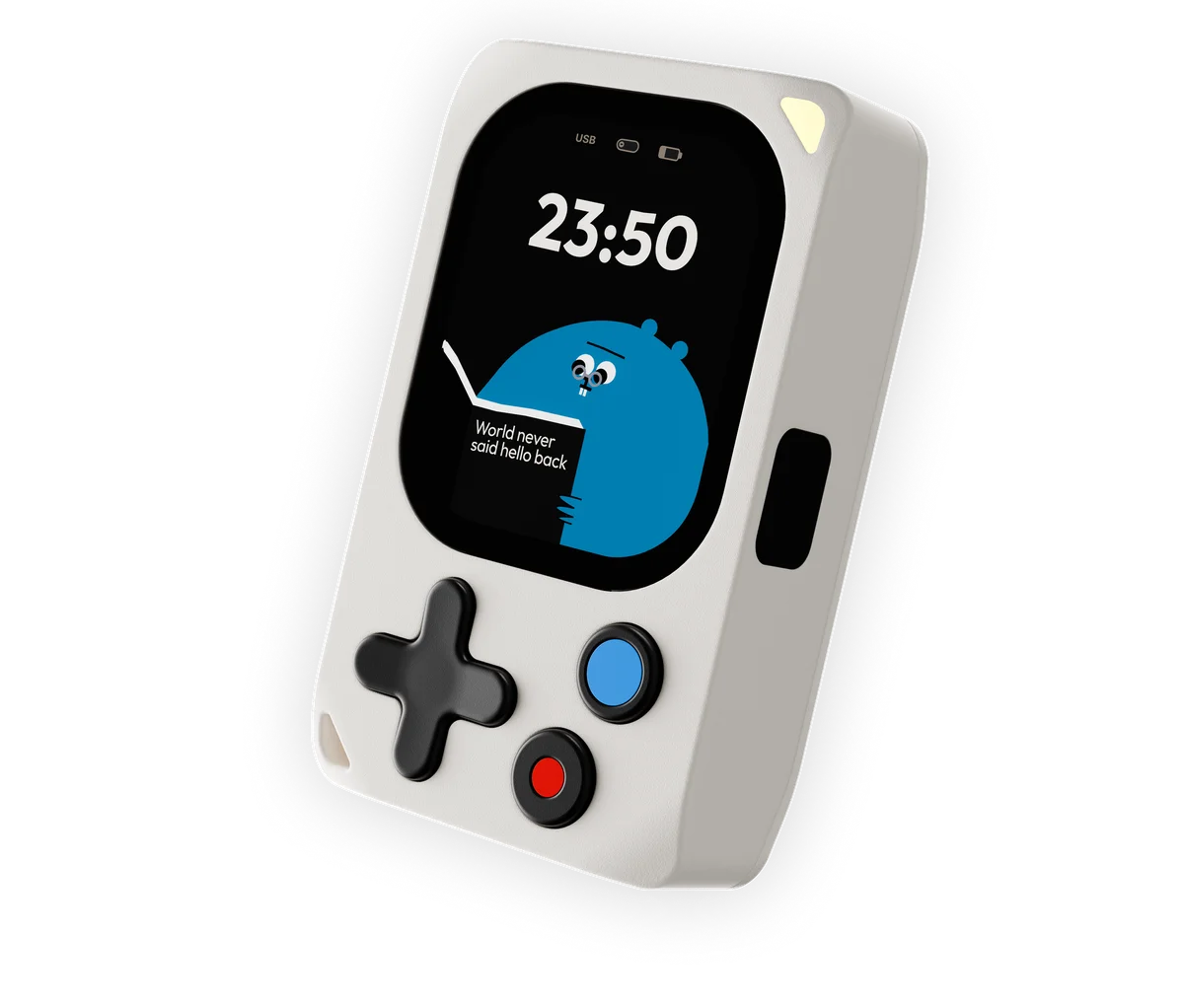

Power is not an excuse anymore.
Main dual core processor up to 400MHz
Low power 2.4-5GHz WIFI, BLE, Zigbee

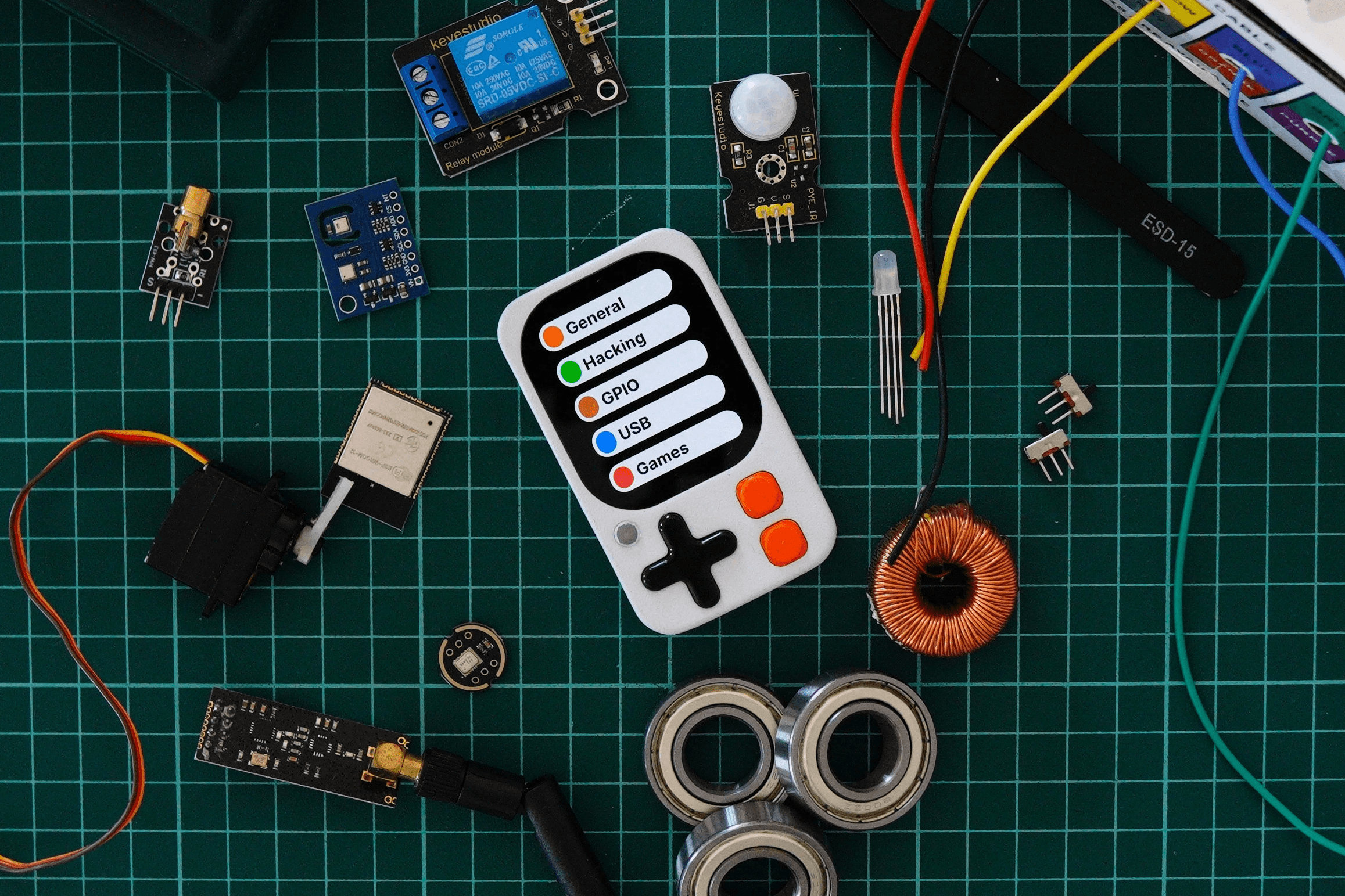

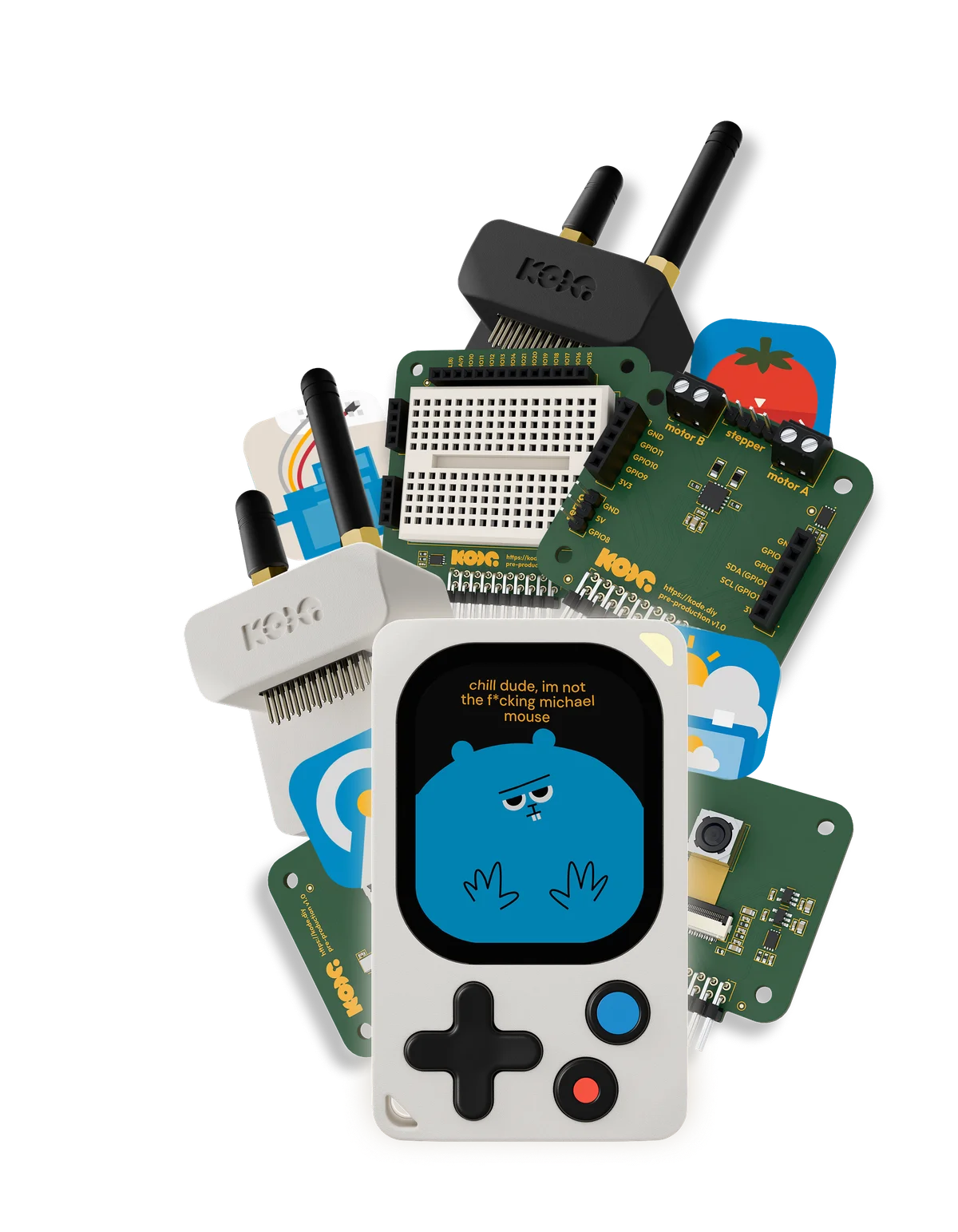

Snap on a new superpower.

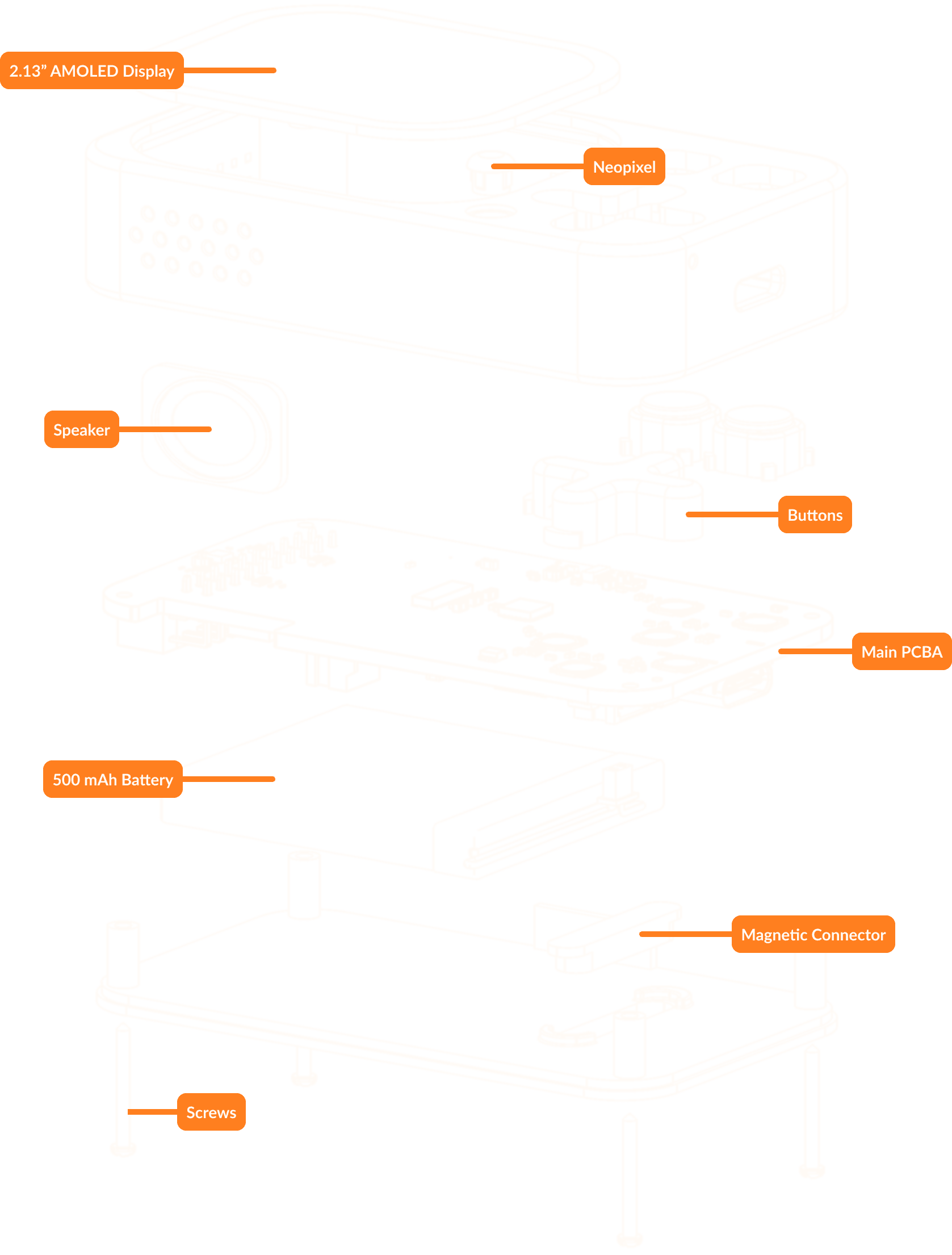

Small device. Big toolbox.
Every chip, sensor and port the Kode Dot packs in.
ESP32-P4 + C5
The P4 runs everything; the C5 does the wireless.
2.13″ AMOLED display
A crisp 502×410 touch panel.
32 MB PSRAM · 32 MB flash
Real memory headroom for real apps.
NFC · RFID · IR
Read and emulate tags, cards and remotes.
CO5300 display driver
Drives the AMOLED over MIPI-DSI, smooth and fast.
CST820 touch
Quick, accurate capacitive touch.
9-axis IMU
6-axis LSM6DSV plus a LIS2MDL compass: a full 9-axis motion stack.
ST25R3916B NFC
Read, write and emulate 13.56 MHz tags.
125 kHz RFID
Read and emulate cards through a discrete analog front-end.
IR transceiver
Blast and capture infrared. Learn any remote.
microSD (SD/MMC)
Removable storage for data and big apps.
Speaker + mic
ES8311 codec and NS4150B class-D amp drive the speaker, plus an on-board mic.
Haptic vibration motor
Crisp vibration feedback from an AW86233 LRA driver.
BQ25896 PMIC
USB-C charging with power path and OTG.
CW2217 fuel gauge
Knows exactly how much battery is left.
LiPo battery
Power your projects. Capacity TBD.
Battery-backed RTC
Keeps real time on the always-on domain.

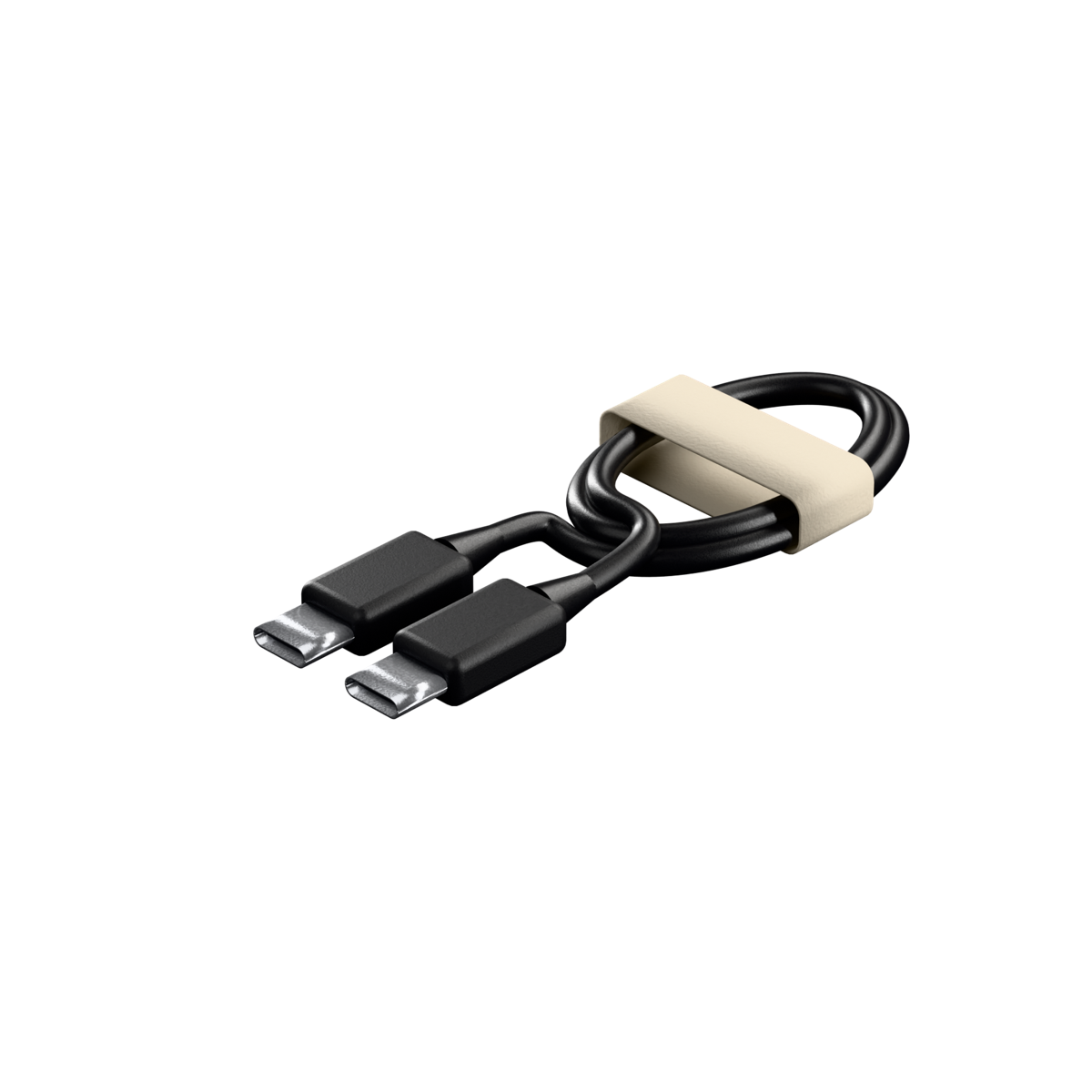

USB-C + JTAG
Flash, charge, debug and USB OTG, all over one port.
Magnetic pogo connector
Charge in or power out, plus two programmable GPIOs.

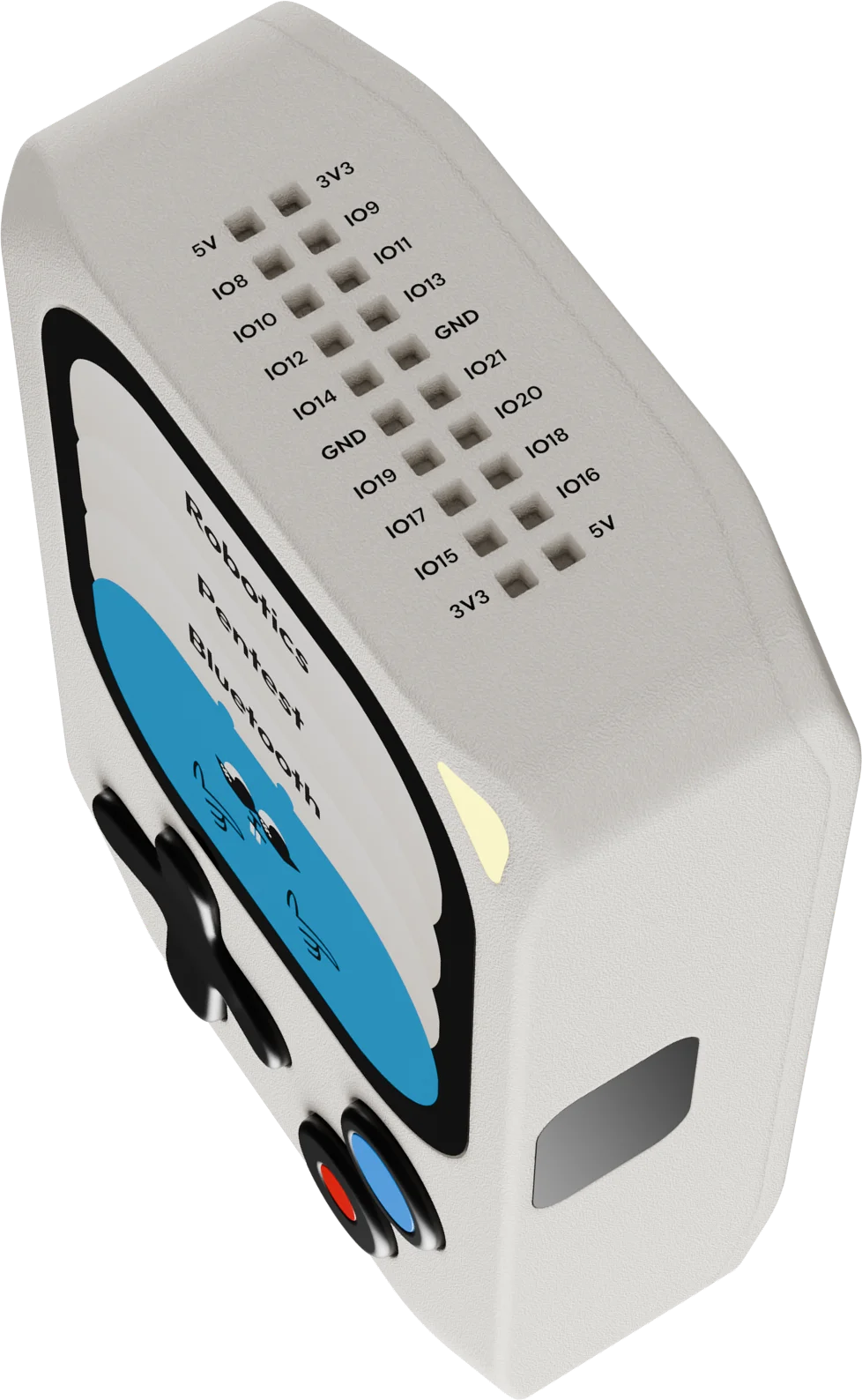

20-pin GPIO header
14 programmable GPIOs, plus 5 V and 3.3 V rails up to 2 A each.
D-pad + 2 buttons
A 4-button D-pad and two extra buttons for games and menus.
KTD2026 RGB LED
An addressable status light to play with.
